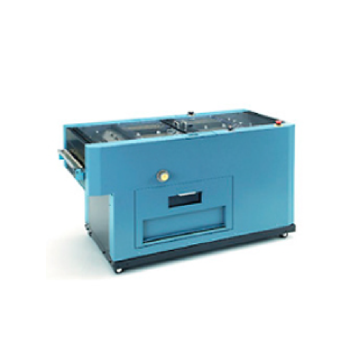

Slitter-Cutter-Creaser | SCC

Products

The Duplo SCC is a unique product designed to enhance the productivity of Duplo near-line booklet-making systems using full breed digital color sets and mixed color and black and white sets. Part of Duplo system 5000 range, the SCC is an optional unit designed specifically for the digital color user. It is able to slit, cut and crease in a single pass, making the finishing of digital colour books simpler and faster than ever.

Process Speed
3,600sheets/h
  • A5~A3
  • Slit+Creaser speed 60sheets/min
  • CCD cencer
Model/Type Slitter-Cutter-Creaser SCC
Machine Type Floor model
Paper type 【Process Path】
Fine Quality Paper
 80.0 to 300.0 gsm
Art/Coated Paper
 84.9 to 300.0 gsm
【Bypass】
Fine Quality Paper
 60.0 to 127.9 gsm
Art/Coated Paper
 84.9 to 157.0 gsm
Paper size Length
 170 to 500 mm
Width
 120 to 356 mm
Slitting Range
(Both edges are slit)
Front edge
 4 to 25 mm
Rear edge
 4 to 25 mm
Cutting Range
(Both edges are slit)
Lead edge
 4 to 25 mm
Tail edge
 4 to 25 mm
Maximum Process Speed 【Process Path】
Slitter
 60 sheets/min
Cutter
 25 sheets/min
Creaser
 60 sheets/min
【Bypass】
A3
 150 sheets/min
A4
 200 sheets/min
Power Supply 120V - 240V, 50Hz/60Hz
Power Consumption 120W, 1.4 - 0.6A
Dimensions Min
 1,320(W)×610(D)×810(H) mm
Max
 1,320(W)×735(D)×810(H) mm
Weight 187kg

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.
