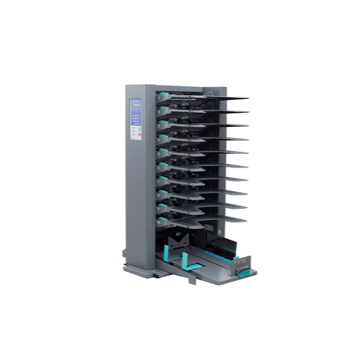

Collator | DFC-101

Products

DFC-101 are high speed,easy to use friction collators, with reliable feeding and accurate stacking. Working standalone or as part of a collating/booklet making system with the DBM-150 booklet maker,the DFC-101 offers a cost effective solution for finishing needs.

The number of bins Process Speed
10 bins/tower 7,200sets/h
  • Paper SizeA5~A3SR
  • Bin capacity 28mm
  • Process speed 70sets/min
Model/Type Collator DFC-101
Model Type Friction feed vertical collator
No. of bins 10bins
Paper Size MAX.A3SR (320 x 450 mm)
MIN.A5 (140 x 160 mm)
※100 mm width available by 100 MM KIT(option)
Paper Type Medium quality paper, Fine porous paper, Fine quality paper (52.3 to 128 gsm)
Paper feed bin capacity 28 mm(equivalent to Fine quality paper 64gsm, 350 sheets)
Maximum Process Speed 120 sets/min (A4 long edge feed)
70 sets/min(A4 short edge feed)
Paper Stack Straight, Offest
Paper Stack Capacity Max 80 mm (The height of full detection sensor is 65 mm)
Counter 4-digi counter (count up/count down)
Paper feed error detection Empty feed, double feed, paper jam
Other Functions Counting function, no paper detection, conveyance cover open/close detection, paper receiving table full, downstream unit error detection, paper set jam
Power Supply AC 100 - 240V, 50/60 Hz
Power consumption 1.2 - 0.8 A 120W
Dimensions 820(W)× 618(D)× 1,000(H)mm
Weight 65kg
Option DFC cabinet, 100 MM KIT, Delivery unit

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.

Other related equipment

COLLATORS

Products

Suction Collator
DSC-10/60iL

The number of bins Units connectable Process Speed
10 bins/tower 6 towers 10,000sets/h
Products

Suction Collator
DSC-10/20

The number of bins Units connectable Process Speed
10 bins/tower 2 towers 7,200sets/h
Products

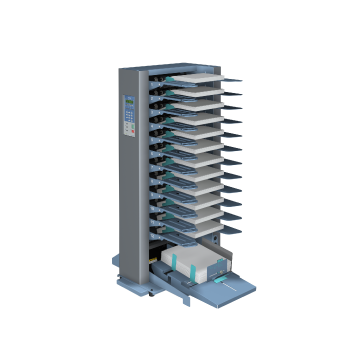

Collator
DFC-120

The number of bins Process Speed
12 bins/tower 4,200sets/h

SHEET FEEDERS

Products

Sheet Feeder
DSF-6000

Paper size Paper loading volume Process Speed
B6~A3SR 610mm 600sheets/min
Products

Sheet Feeder
DSF-2200

Paper size Paper loading volume Process Speed
A5~A3SR Upper tray:65mm
Lower tray:200mm
200sheets/min

BOOKLET MAKERS

Products

Saddle Stitcher
DBMS

Paper size Type of stitching Process Speed
A4LS Saddle stitch 4,500sets/h
Products

Booklet Maker
DBM-600

Paper size Type of stitching Process Speed
A4LS Saddle stitch 4,600sets/h
Products

Booklet Maker
DBM-350

Paper size Type of stitching Process Speed
A5~A3SR Saddle stitch 3,000sets/h
Products

Booklet Maker
DBM-150

Paper size Type of stitching Process Speed
A5~A3SR Saddle stitch 2,400sets/h
Products

Stitcher
DBM-60S

Stitcher Heads Process Speed
2 positions 4,500sets/h

TRIMMER

Products

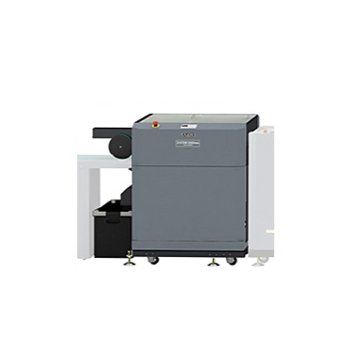

Trimmer
